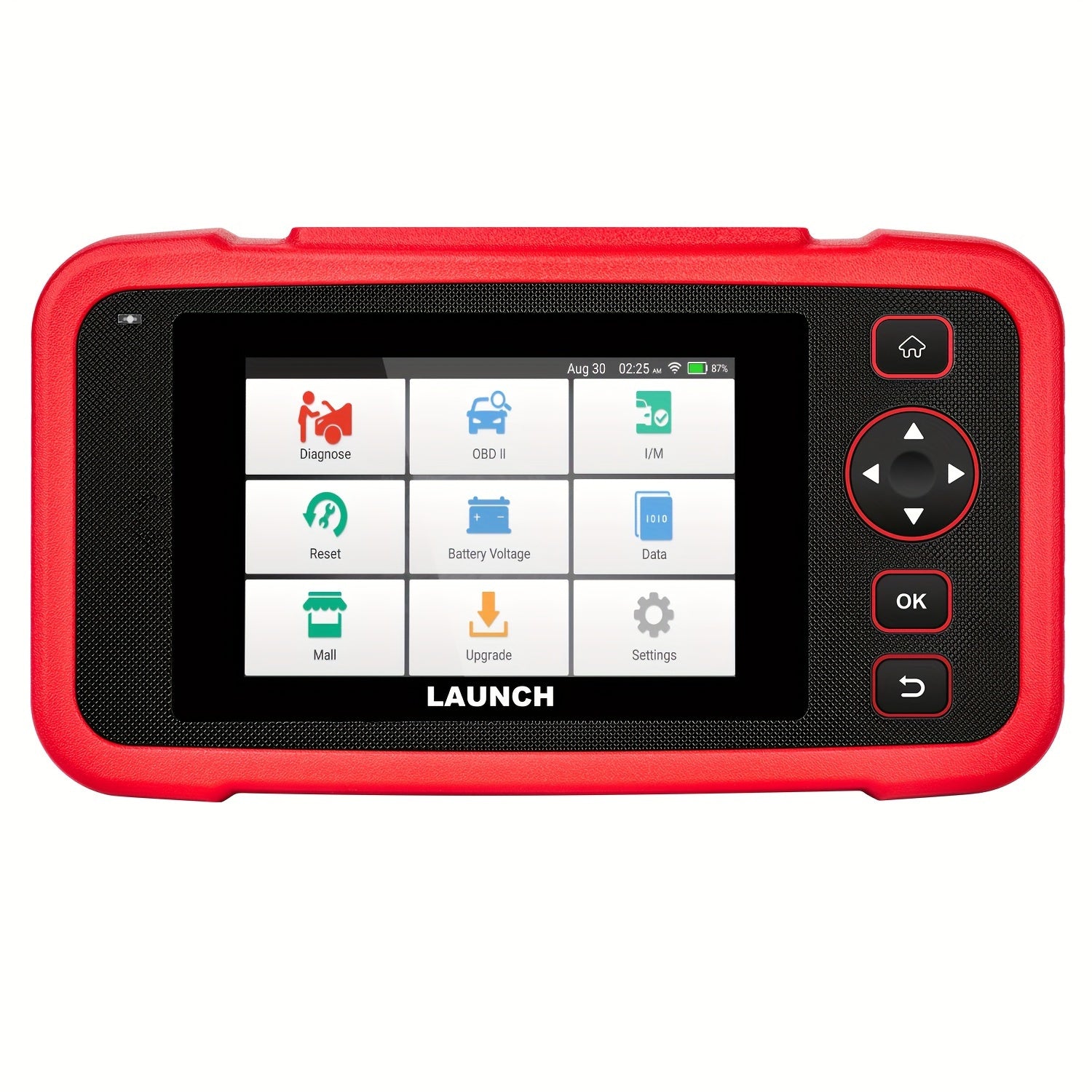

LAUNCH CRP123I V2.0 OBD2 Scanner Diagnostic Tool

LAUNCH CRP123i V2.0 OBD2 Code reader Scanner ,Diagnose Engine ABS SRS Air bag Transmission System , Oil / ETC / SAS Reset Function with Battery Test & Auto VIN Function , Wi-Fi One-Click Update Lifetime Free

LAUNCH CRP123i V2.0 Supports Language :

English, Spanish, French, German, Italian, Japanese, Korean, Portuguese, Polish

LAUNCH CRP123i V2.0 Diagnose 4 Systems – Check Engine , ABS , SRS and Transmission System

Engine System Diagnosis

By Reading, Clearing DTCs and viewing Live Data Stream, the scan tool can help you easily pinpoint the cause of the Engine System problem and turn off the warning light related, thus ensuring the engine works properly, and enhancing its performance.

ABS System Diagnosis

By accessing to ABS system to view its Live Data Stream, and retrieving the fault codes, this LAUNCH Creader scanner can troubleshoot the ABS issue with a visual inspection of all brake components that caused the warning light,

and turn the light off.

SRS System Diagnosis

By detecting every electronic parameters in SRS system to check their health status, this diagnostic tool can address the SRS potential issues timely to ensure your driving safety, and turn off the warning light of Air bag.

Transmission system diagnosis

By checking the Transmission system, this tool can figure the problem out via reading codes, or check the health status via Live Data viewing, and turn off the warning light,

making sure that the right amount of power goes to the wheels to drive at a given speed.

Effortlessly Do the Maintenance by Yourself – 7 Built-in Reset Functions, Purchase More from MALL Menu

1> Oil Reset Service

This function enables you to reset the oil service for the engine oil life system,which calculates an optimal oil life change interval depending on the vehicle driving conditions and weather events.
lt needs to be performed in the following cases:
1. lf the service lamp is on, run car diagnostics first for troubleshooting.

Afterthat, reset the driving mileage or driving time, so as to turn off the servicelamp and enable a new driving cycle.
2. lf the service lamp is not on, but you have changed the engine oil or electric
appliances that monitor oil life, you need to reset the service lamp.

2> Electronic Parking Brake Reset

This function enables you to reset the brake pad after replacing the brake pad.lt needs to be performed in the following cases:
1.The brake pad and brake pad wear sensor are replaced.

2.The brake pad indicator lamp is on.
3.The brake pad sensor circuit is short, which is recovered.4.The servo motor is replaced.

3> ABS Bleeding

This function allows you to perform various bi-directional tests to check theoperating conditions of Anti-lock Braking System(ABS).
lt needs to be performed in the following cases:
1. When the ABS contains air.
2. When the ABS computer, ABS pump, brake master cylinder, brake cylinder,brake line, or brake fluid is replaced.

4> Battery Maintenance System Reset

This function enables you to perform a resetting operation on the monitoringunit of vehicle battery, in which the original low battery fault information will becleared and battery matching will be done.
lt needs to be performed in the following cases:1. The main battery is replaced.
2. The battery monitoring sensor is replaced.

5> Diesel Particulate Filter (DPF) Regeneration

This function enables you to clear PM(Particulate Matter) from

the DPF filterthrough continuous combustion oxidation mode (such as high temperatureheating combustion,fuel additive or catalyst reduce PM ignition combustion)to stabilize the filter performance.
lt needs to be performed in the following cases:
1. The exhaust back pressure sensor is replaced.
2. The PM trap is removed or replaced.
3. The fuel additive nozzle is removed or replaced.
4. The catalytic oxidizer is removed or replaced.
5. The DPF regeneration MlL is on and maintenance is performed.

6. The DPF regeneration control module is replaced.

6> Electronic Throttle Position Reset

This function enables you to make initial settings to throttle actuators andreturns the learned values stored on ECU to the default state. Doing so canaccurately control the actions of regulating throttle (or idle engine) to adjust theamount of air intake.

7> Steering Angle Calibration

This function enables you to reset the steering angle,after replacing thesteering angle position sensor,

replacing steering mechanical parts (such assteering gearbox,steering column, end tie rod, steering knuckie), performingfour-wheel alignment, or recovering car body.
To reset the steering angle, first find the relative zero point position for thecar to drive in straight line. Taking this position as reference,the ECU cancalculate the accurate angle for left and right steering.

LAUNCH CRP123I V2.0 Supports Full obd2 Function which are Ready for Engine System

$01 – Request Current Powertrain Diagnostic Data

$02 – Request Powertrain Freeze Frame Data

$03 – Request Emission-Related Diagnostic Trouble Codes

$04 – Clear/Reset Emission-Related Diagnostic Information

$05 – Request Oxygen Sensor Monitoring Test Results

$06 – Request On-Board Monitoring Test Results for Specific Monitored Systems

$07 – Request Emission-Related Diagnostic Trouble Codes Detected

During Current or Last Completed Driving Cycle

$08 – Request Control of On-Board System Test or Component

$09 – Request Vehicle Information

$0A – Request Emission-Related Diagnostic Trouble Codes with Permanent Status

LAUNCH CRP123I V2.0 Battery tester Function – Real Time Battery Voltage Graphing

Check the battery status in real time and eliminate the most easily overlooked battery problems

LAUNCH CRP123I V2.0 Auto VIN Function – Quick VIN Identification

The CRP123I V2.0 is an easy-to-use scanner aiming at helping you solve automotive issues quickly and accurately. In addition to manually selecting the vehicle information like year, make, model, and VIN,

you can quickly access the system via AutoDetect for VIN acquisition.

LAUNCH CRP123E V2.0 Other Function :

Live Data Stream Analyse in Graph

The launch scanner CRP123E shows you live sensors data and provides data graphing for intuitive diagnostics and monitoring your vehicle performance, help customers to better analyze the abnormal parameter.

Date Record & Playback

Another great feature about this automotive diagnostic scanner is that it would allow you to view the Live Data Stream,

and to record the data in Waveform. This would save you the hassle of reading through and digesting all the information which is being presented to you. You can even playback these data, for better analysis and rectification as well as future use.

Google DTC Inside

After you get the diagnosis results, quickly get the maintenance information through the built-in Google DTC system.

Professional, efficient connection of Internet mass information, easy to improve hands-on ability

Share Report via Wi-Fi & print Report

Rather than taking the additional hassle, with this LAUNCH scanner, you would easily be able to share the diagnostics report to your clients or technicians via Wi-Fi. They would take a look at the full, clear, and accurate diagnostic report, and then understand what would need to be done. No more Googling unreliable fixes that would waste your energy.

LAUNCH CRP123E V2.0 supports Over 10000 Car Models,Up to 57 Brands:

For VW,
For NISSAN,
For EOBD2(EOBD2),
For VOLVO,
For MITSUBISHI,
For Dodge,
For Vauxhall,
For Mini,
For DEMO,
For USAFORD,
For MAZDA,
For DAEWOO,
For TOYOTA,
For Lincoln,
For DACIA,
For Tlisuzu,
For Lexus,
For CITROEN,
For SUZUKI,
For LANDROVER,
For CHRYSLER,
For SUBARU,
For Lancia,
For Chevrolet,
For SPRINTER,
For KIA,
For Cadillac,
For SMART(SMART),
For JPISUZU,
For Buick,
For SKODA,
For Jeep,
For BUGATTI,
For SEAT,

Launch CRP123I V2.0 Item Parameter:

Screen:5.0 inch 720P LCD touch screen display
OBD II interface input voltage: 9V~18V DC input voltage: 5V
Connection:standard 16 PIN OBD diagnostic interface
Working temperature:-10°C to 50°C
Storage ambient temperature:-20°C to 70°C

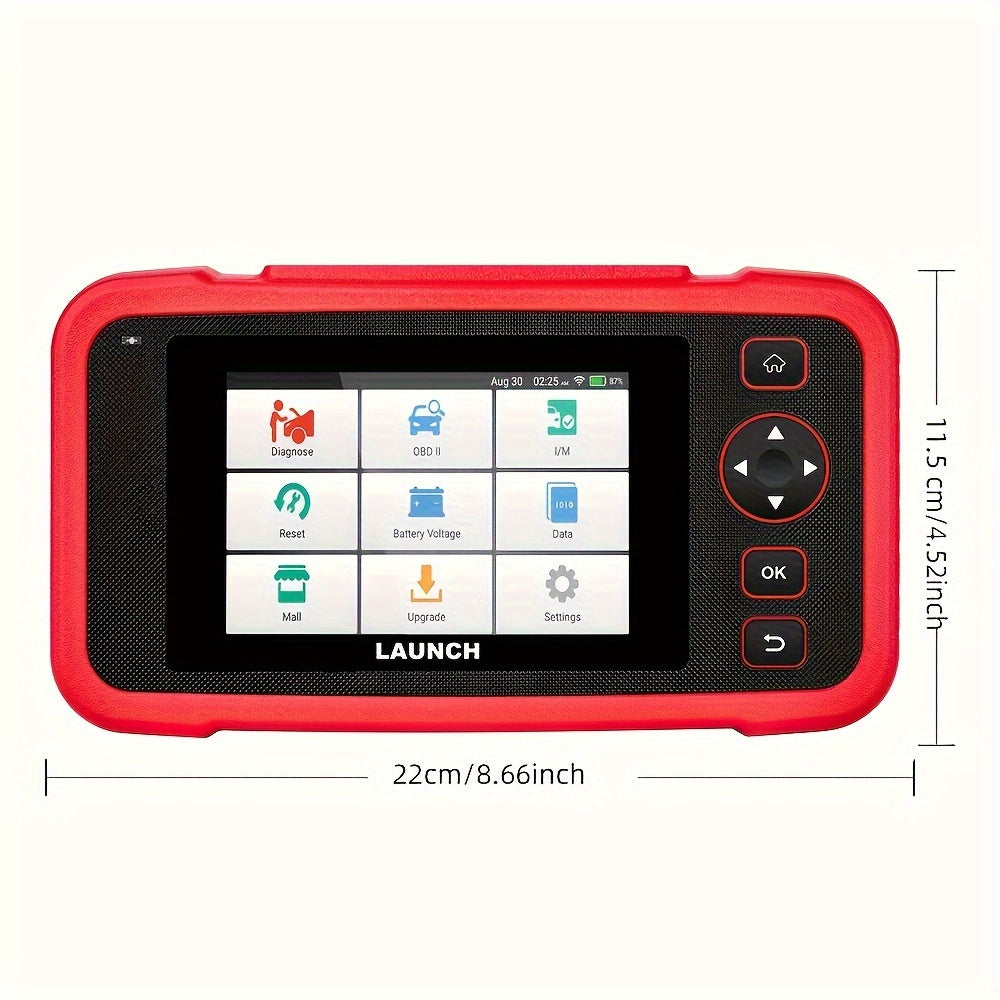

Dimension:228*125*34.5(mm)
Weight:<565g

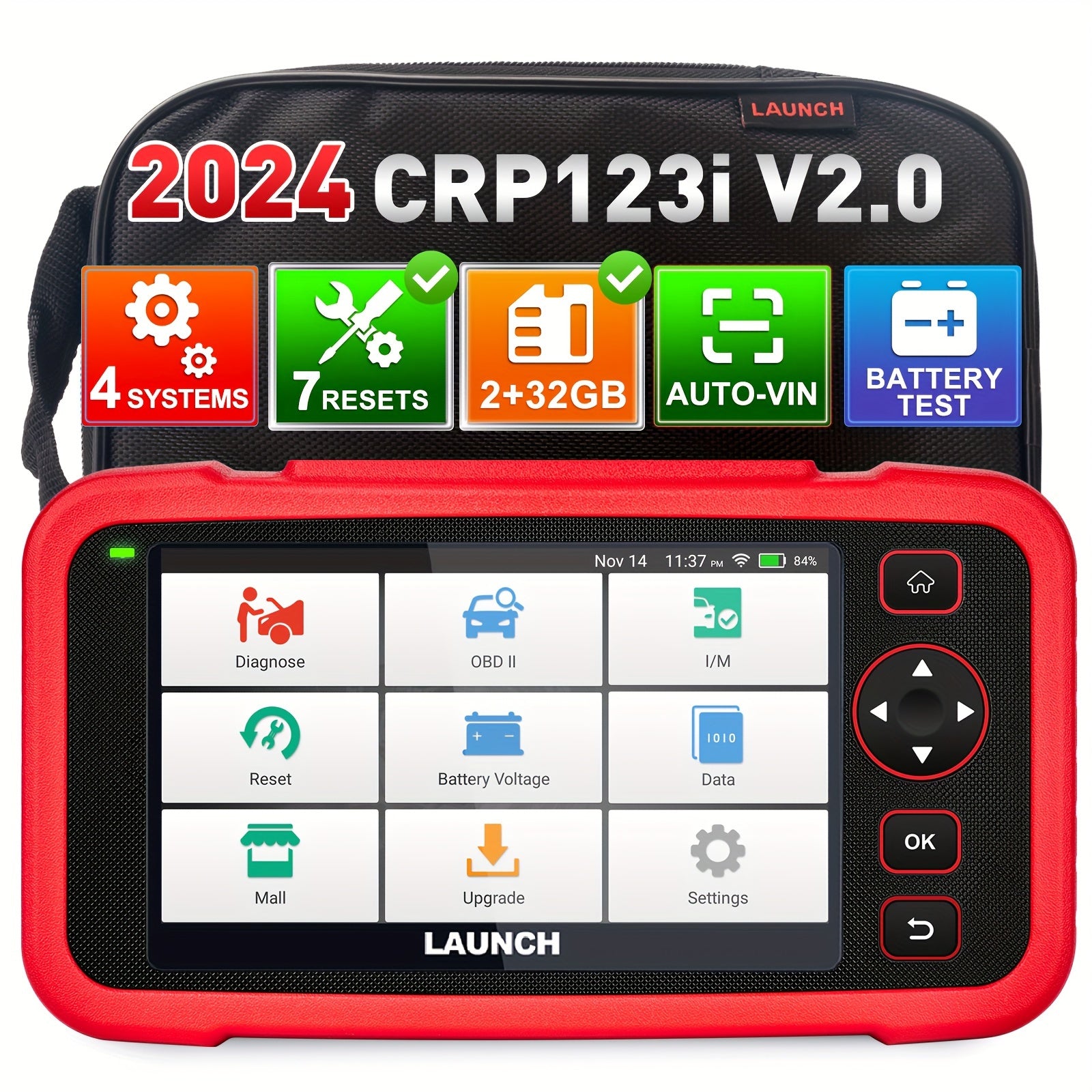

Launch CRP123I V2.0 Packing List:

1 x Creader Professional 123I V2.0 handset
1 x OBD II diagnostic cable
1 x DC 5V charging cable
1 x User manual
1 x Carrying bag
