Power Mode:Room electrical/hard wiring
Operating Voltage:≤36V
Major Material:ABS
Brand:QINGLANG
Item ID:GP151588

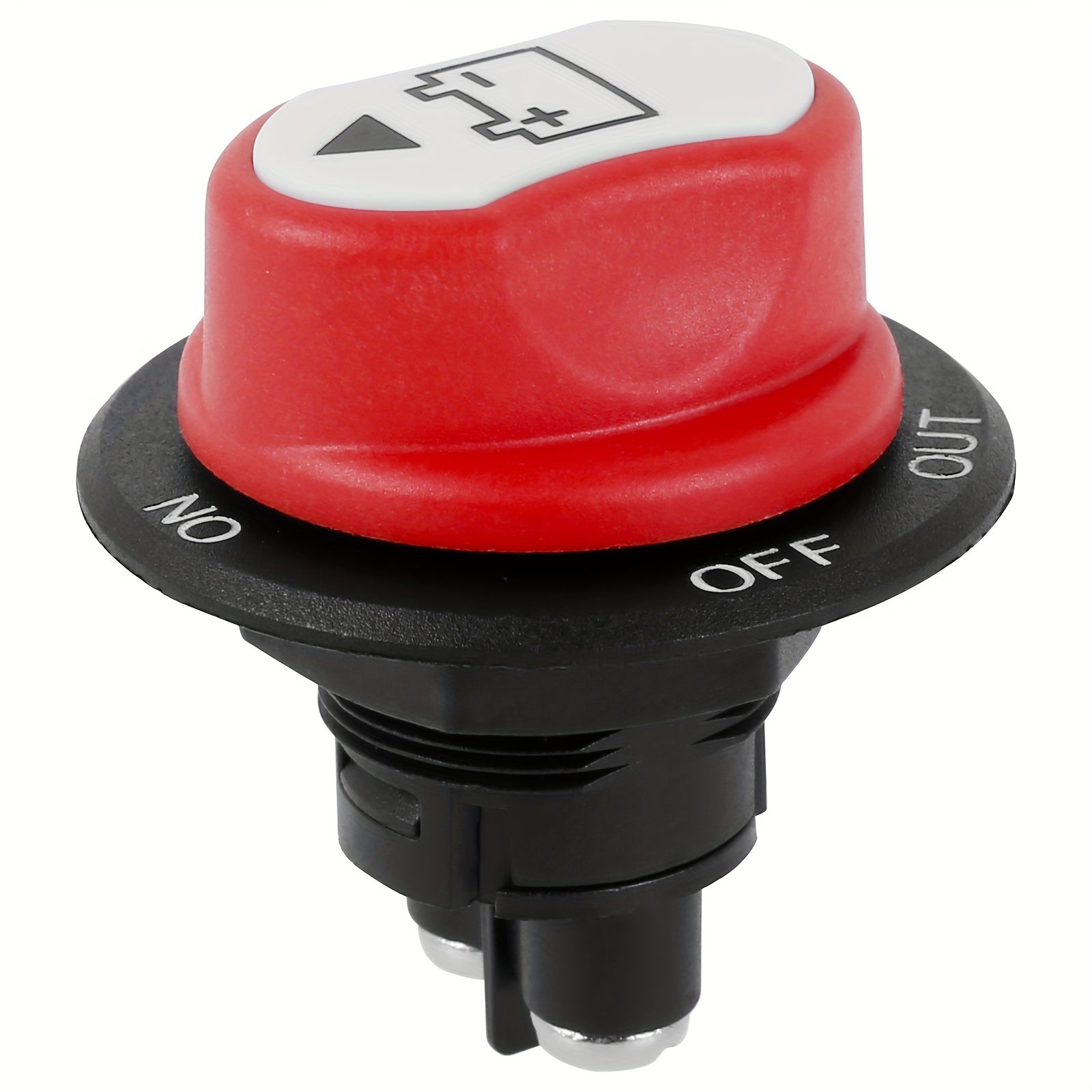

Main characteristics: Safely disconnects the battery: Can be used independently or locked together with other switches. Versatile: Suitable for cars, vehicles, RVs, boats, and other electrical equipment. Designed with ABS plastic housing for safety. Specifications: Product Name: Car Battery Switch Specifications (Optional): 50A, 100A Continuous Rating: 50A: Up to 50V DC, 100A: Up to 32V DC Intermittent Rating: 50A: 75 Amps, 100A: 150 Amps Cranking Rating: 50A: 300 Amps for 5 seconds, 100A: 500 Amps for 5 seconds
Resistance when in contact: maximum of 50m Ohm
Resistance to electrical insulation: minimum of 100M ohm at DC 500V
Resistance to dielectric breakdown: withstands AC 1000V for 1 minute, DC 2000V for 1 minute
Operating temperature range: -30°C to +60°C
Switch type: 2P Single Pole Single Throw, OFF-ON
Suitable for use in 12-48V cars, vehicles, boats, etc.
Material: ABS Plastic
Color: Red, Black, White
Size: As depicted
Please note: 1. The product color may slightly vary from the picture shown. We will make every effort to display the accurate color. 2. Kindly allow for minor size differences due to manual measurement. 1 x Battery Disconnect Switch
