Fitment:
For Big Block For Chevy V8 396-454
If you want to know whether the model is suitable, you can cons
For Chevy 1965-1970 V8 For Chevy big block Mark IV 6.5L/396
For Chevy 1966-1969 V8 For Chevy big block Mark IV 7.0L/427
For Chevy 1970-1972 V8 For Chevy big block Mark IV 6.6L/402
For Chevy 1970-1990 V8 For Chevy big block Mark IV 7.4L/454
For Chevy 1991-1995 V8 For Chevy big block Gen V 7.4L/454
For Chevy 1996-2000 V8 For Chevy big block Gen VI 7.4L/454
(4-barrel square bore, Oval port)
Specifications:
Engine: 396, 402, 427, 454
Intake Style:Single plane
RPM Range:3000-7500+ RPM
EGR or Non-EGR:
Material: Aluminum
Finish:Satin
Includes Gaskets: No
Requires Aftermarket Fuel Rails: No

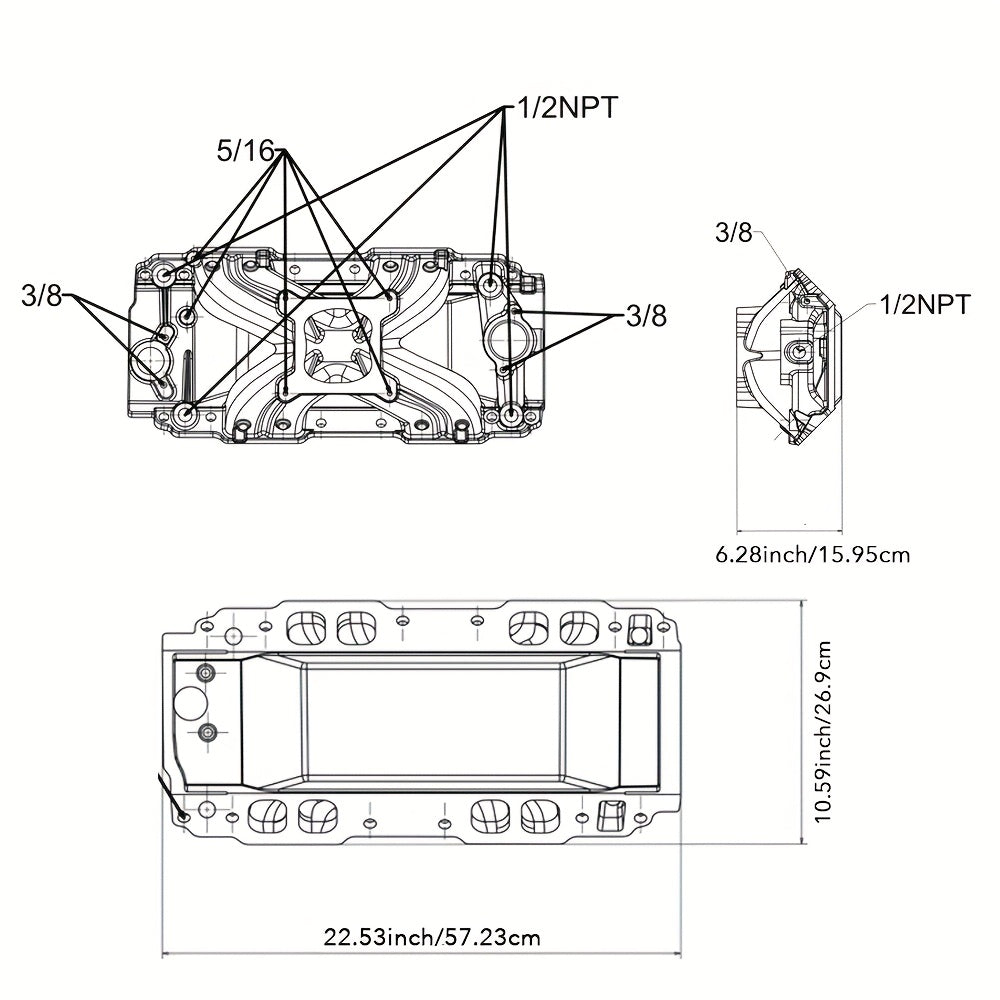

Intake Port Dimensions：2.05″ x 1.82″
Manifold Height：5.87″
Carburetor or Throttle Body Flange: 4150 Square Bore Carb Base Flange
Cylinder Head Type: Oval Port
Engine Make/Size: For Chevy Big Block (396-454)

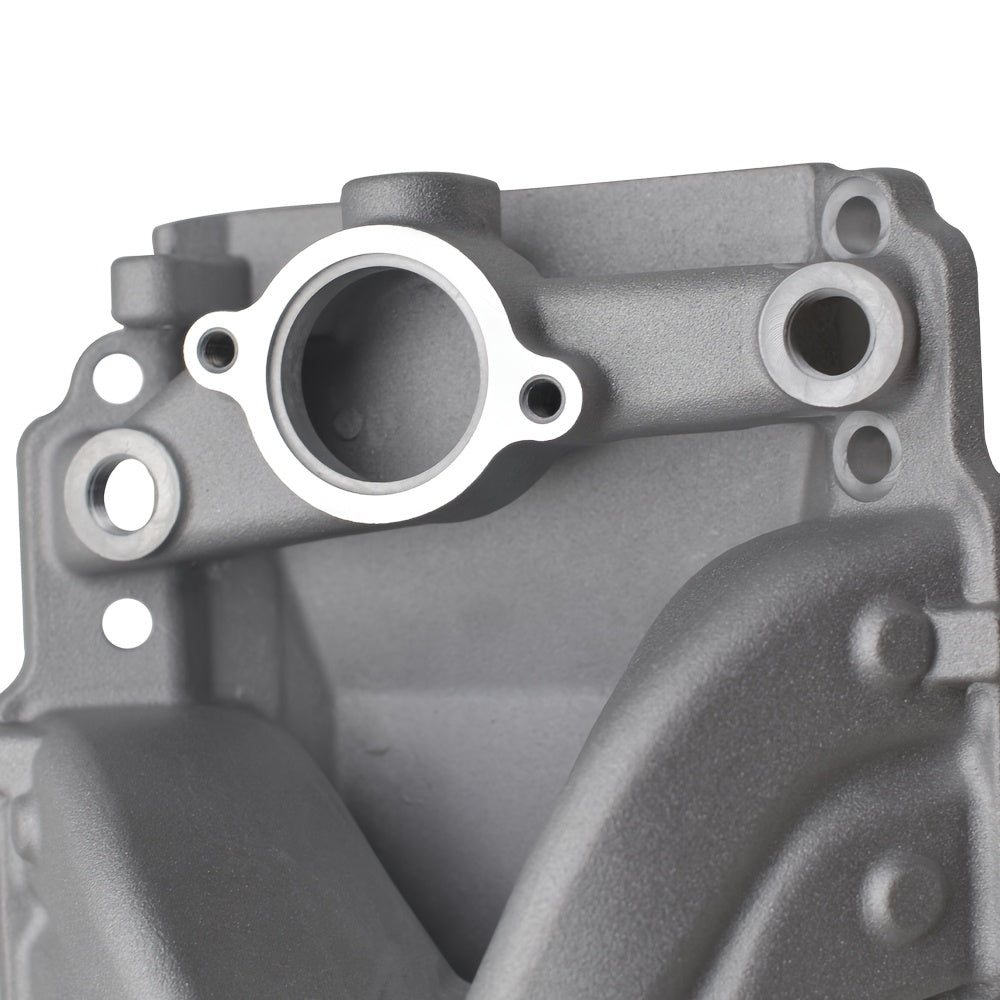

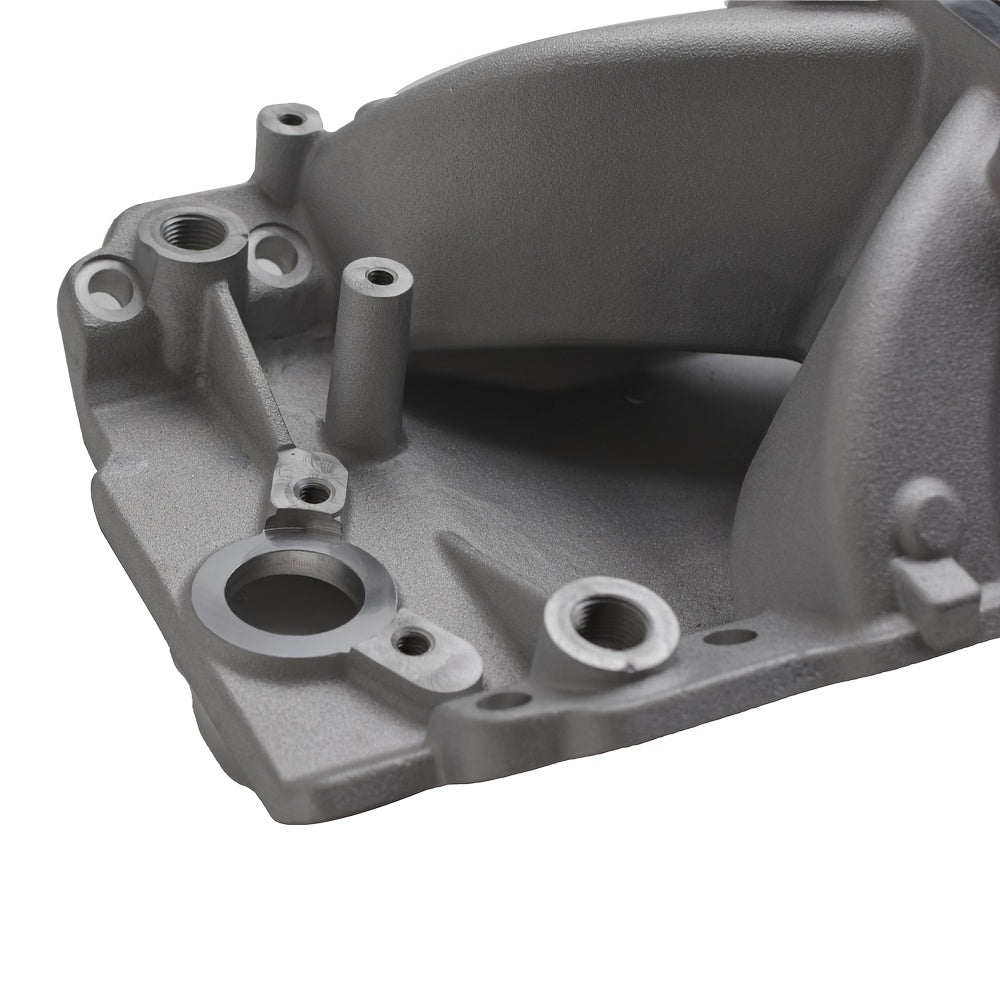

Four corner water ports, dual distributor hold-downs and us bosses
The air gap design allows air to flow under the plenum to prevent heat transfer from the engine, resulting in more horsepower
Best on engines with displacement in the 396 to 454 range producing from 600 to 700 horsepower
Package including:
1x Aluminum Intake Manifold (No adapters include)

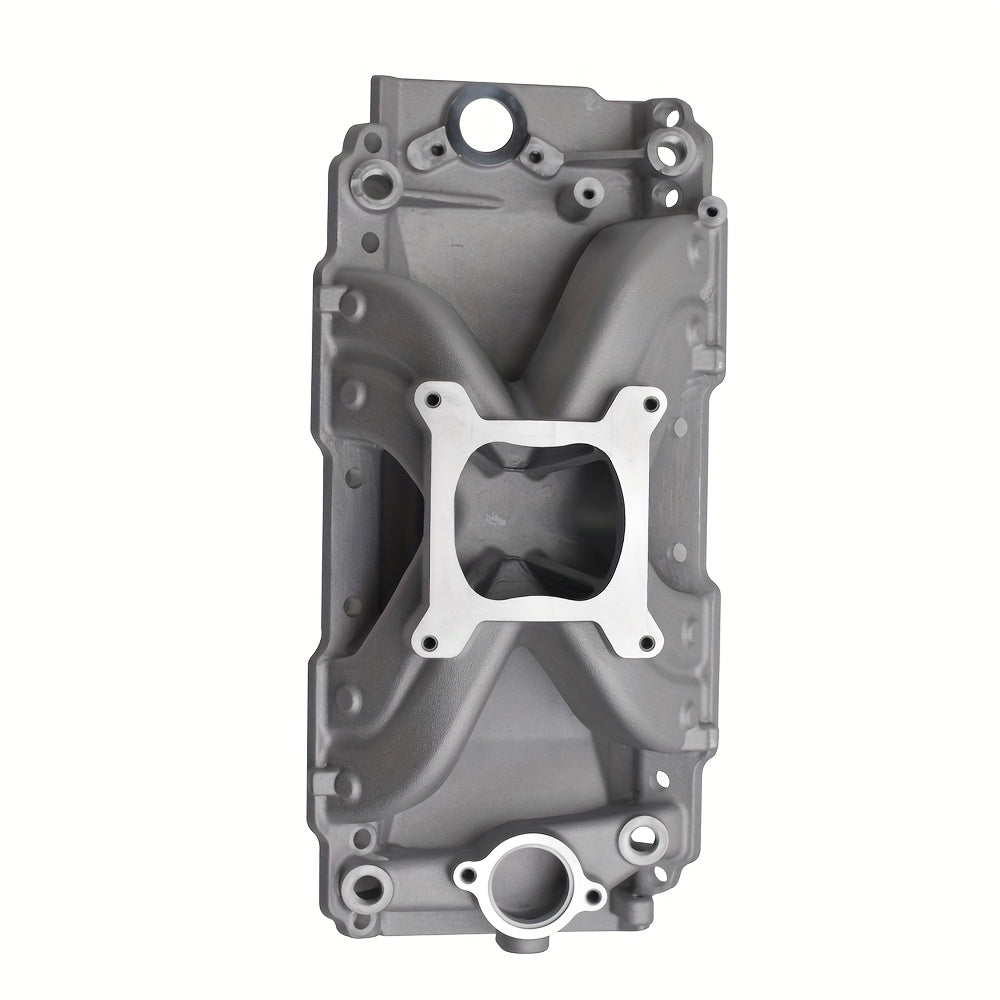

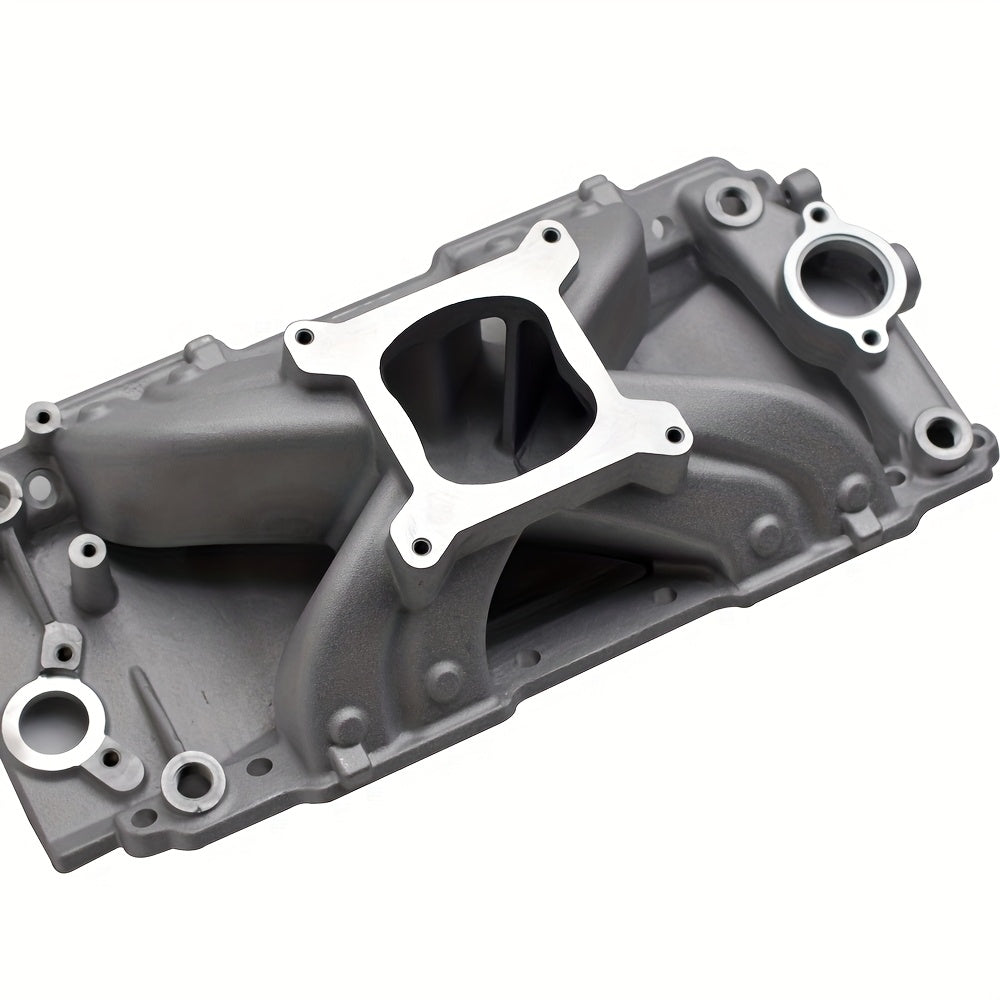

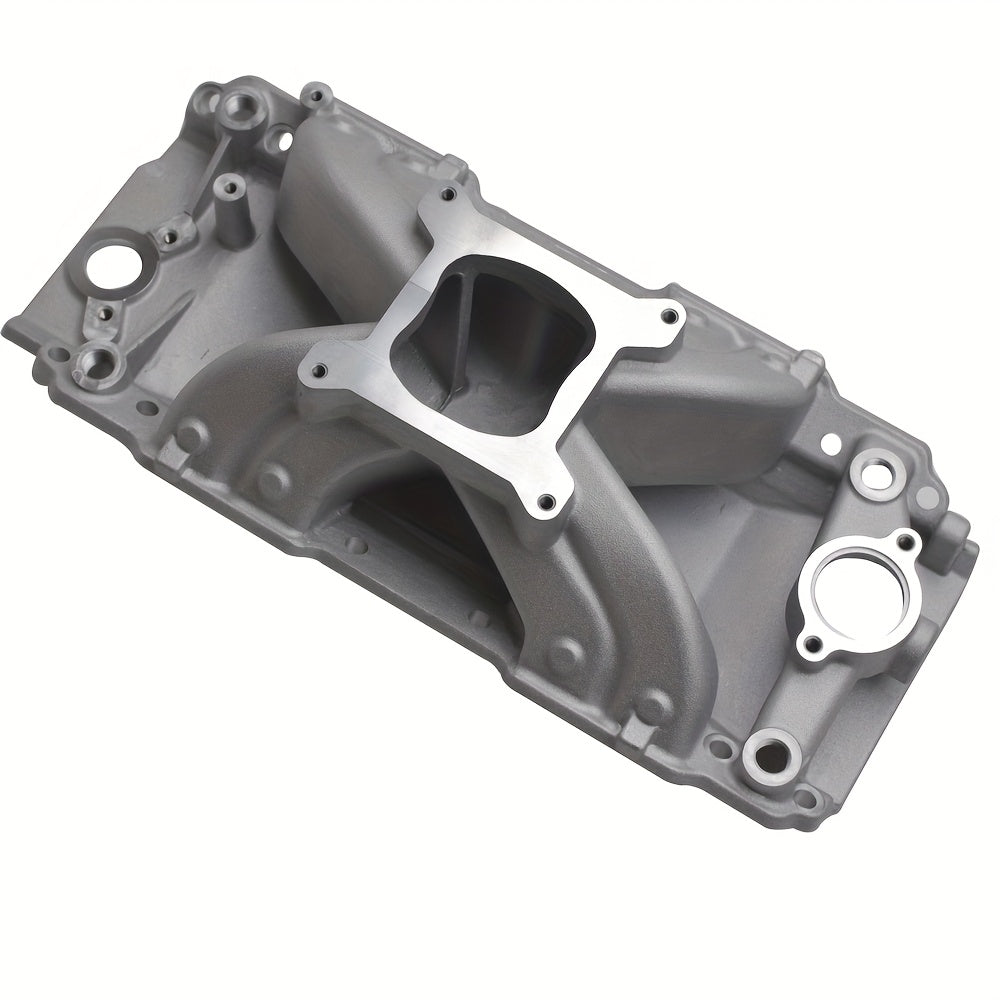

As Shown in the Picture above.
