Max Power:5.8kw/7500r/min±375r/min
Max Torque:8.5 N.m/5000r/min±250 r/min
Start Mode:Electric Start/Kick Start
Transmission:Semi Auto
Ignition:CDI

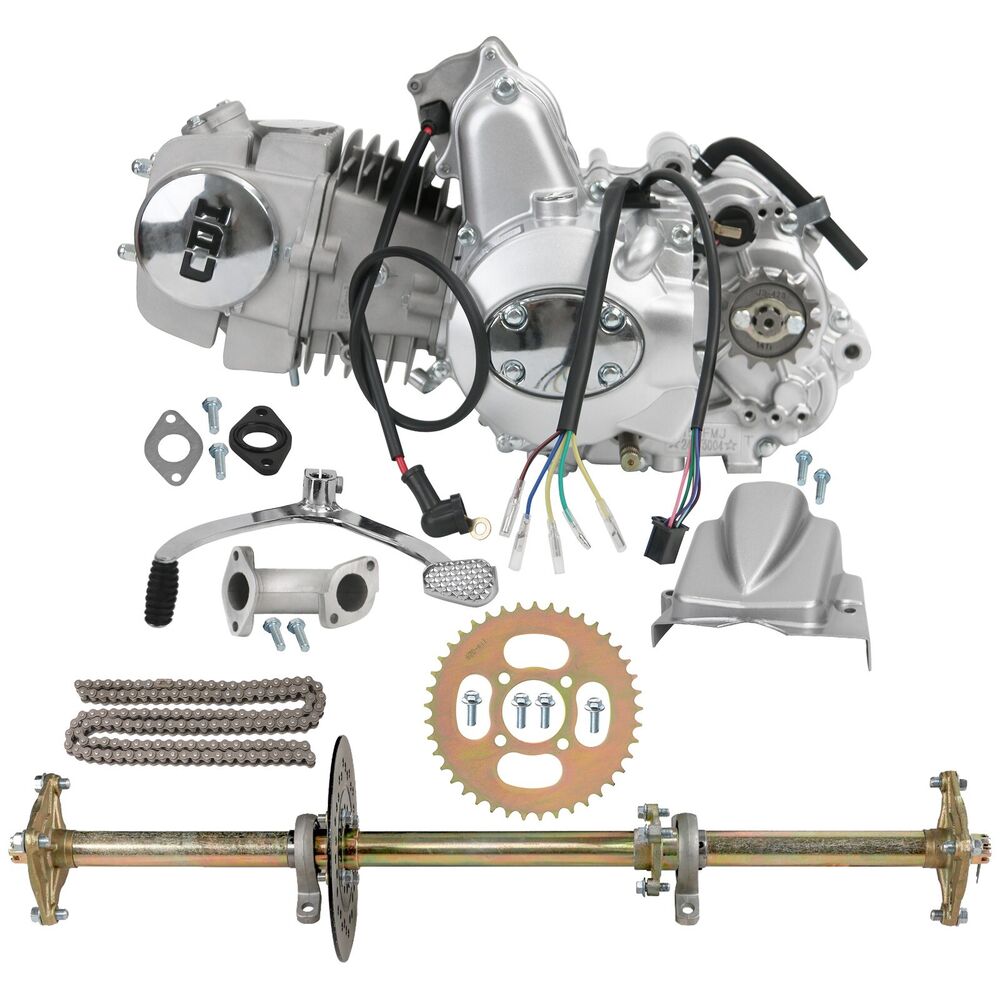

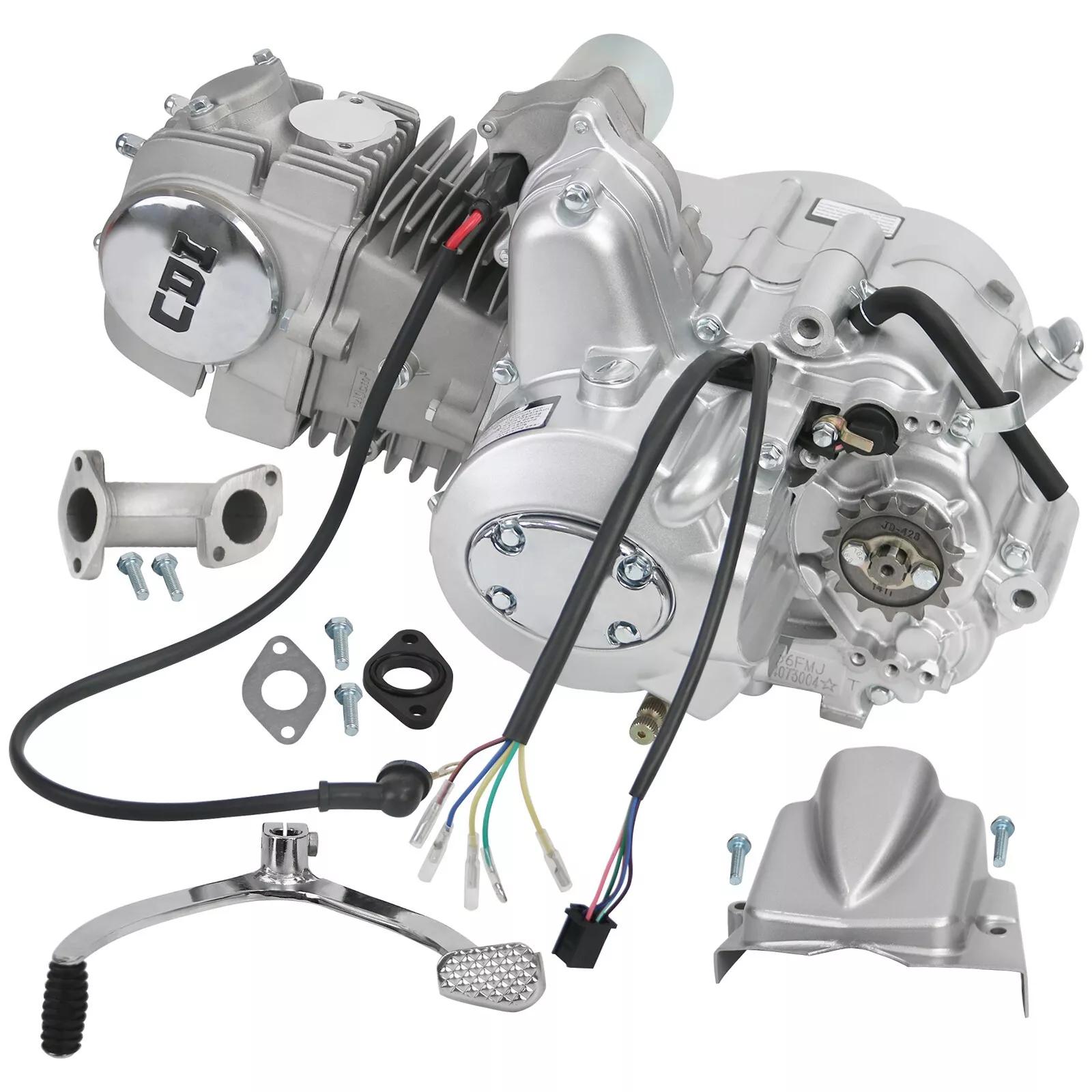

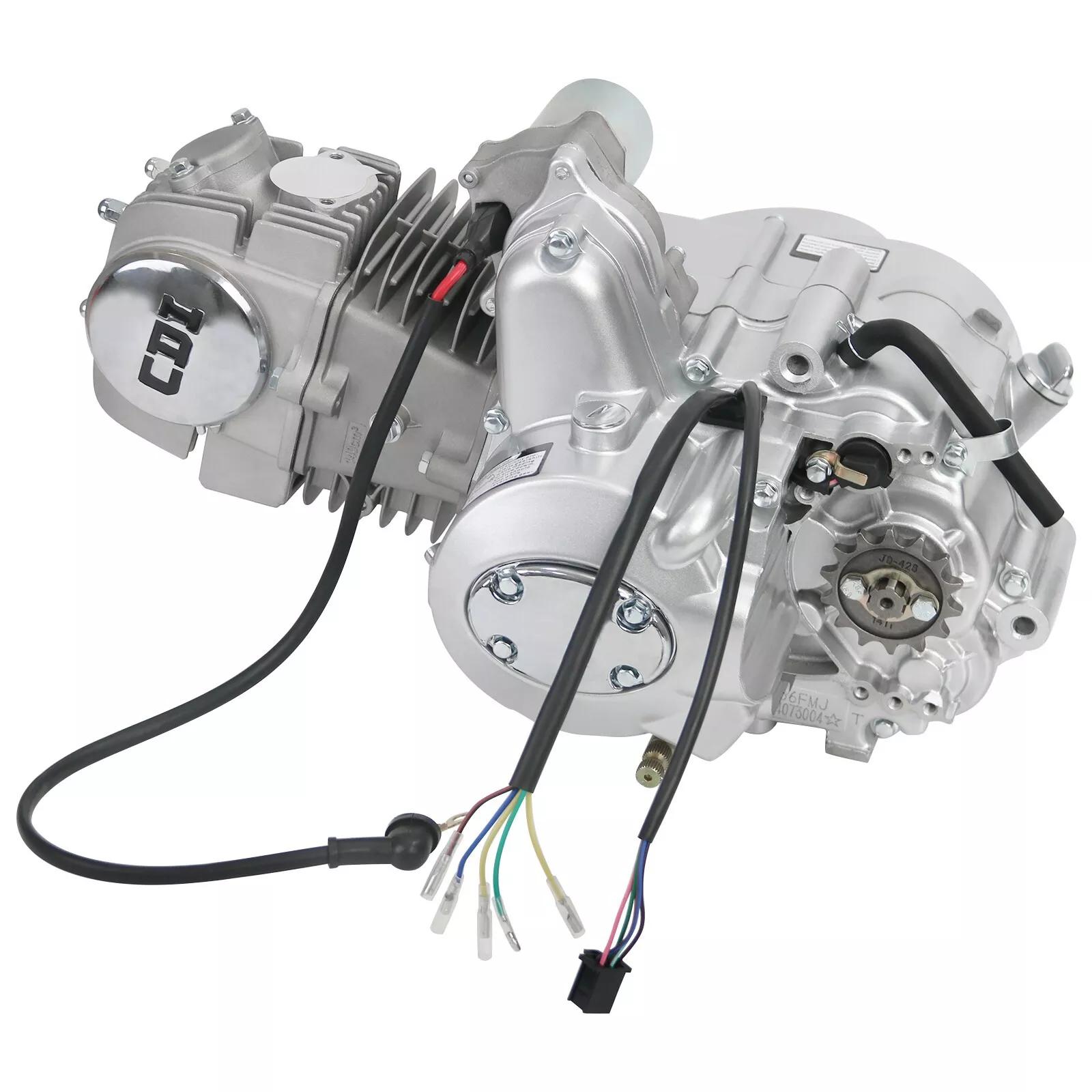

ENGINE SIZE 140CC GEAR SYSTEM 3 FORWARD NEUTRAL REVERSE Type Horizontal, single-cylinder, 4-stroke, air-cooled Start Method Electrical Start Bore x Stroke 52.4×55.5mm, 119.7mL Compression ratio 9.0: 1 Maximum net power/ rpm 5.8 kw/7500r/min±375 r/min Maximum torque/ rpm 8.5 N.m/5000r/min±250 r/min Idle speed 1500 r/min±100r/min Front sprocket 428 – 17mm – 14T
Ignition: CDI
Starter: Kick starter and Electrical Start
Lubrication: Pressure/splash
Oil capacity: 900ml

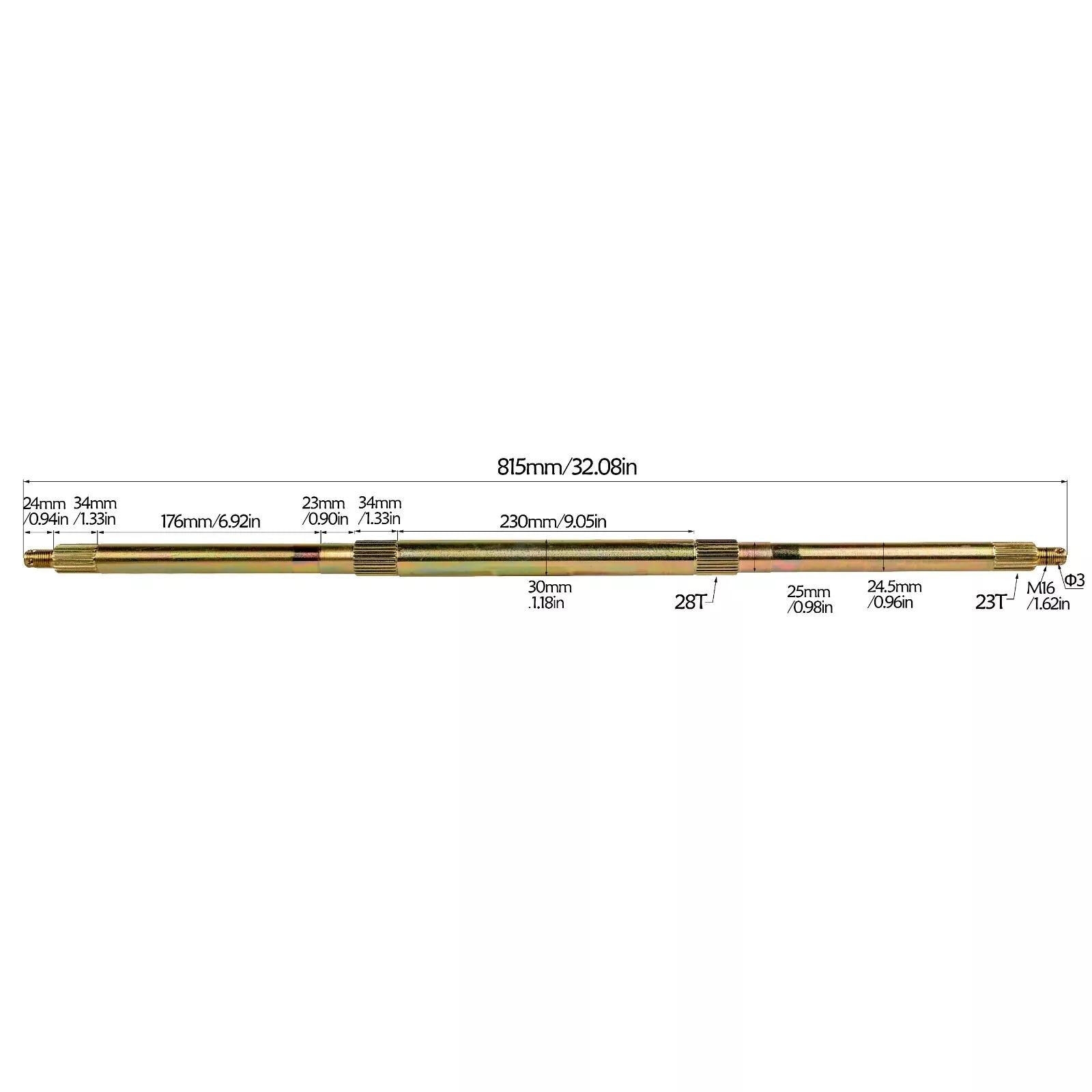

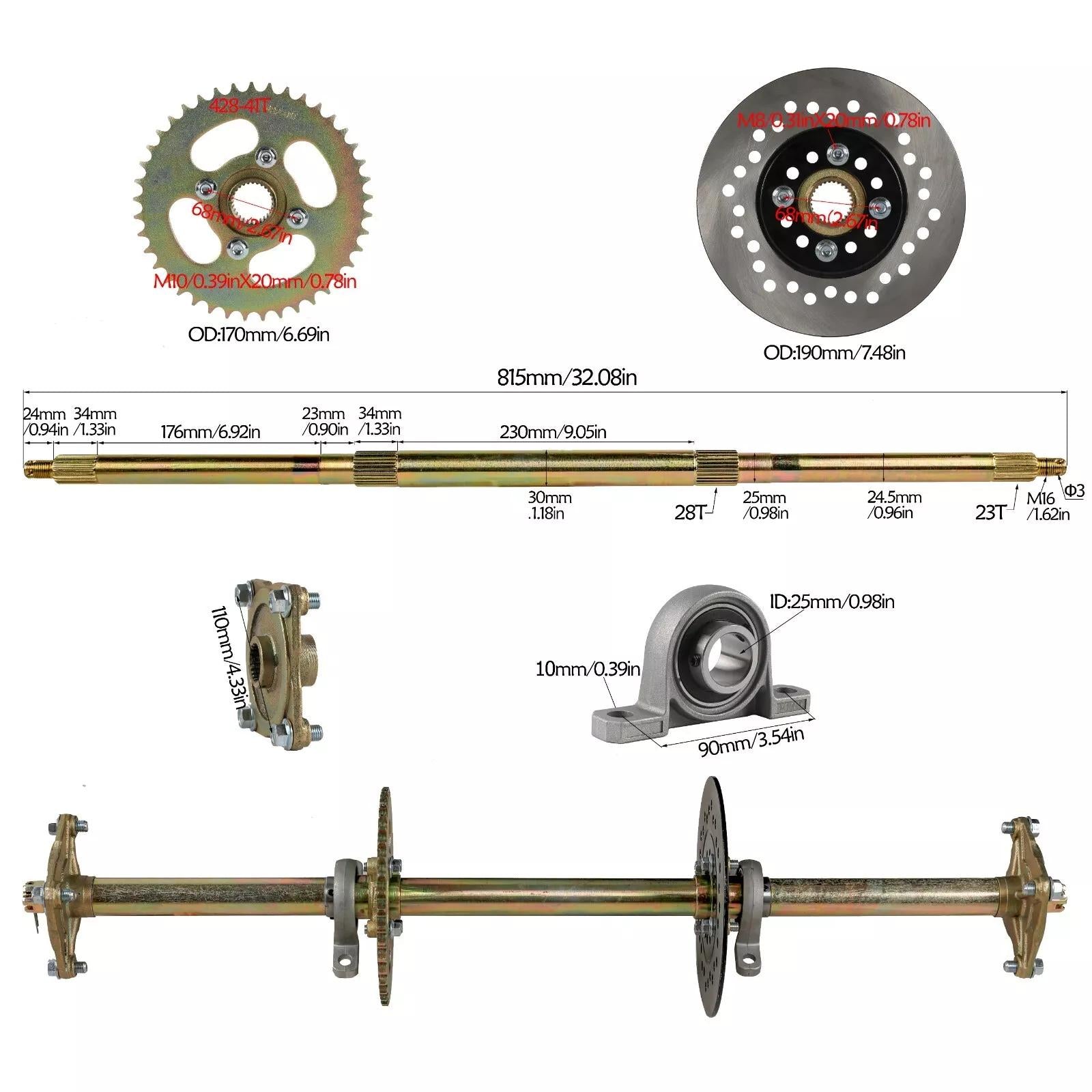

Rear live axle
1. The axle made by high strength chrome, bend proof, can support more than 500lbs.
2. The sprocket can be changed to other type, just make sure the dimension same as this 428 chain sprocket.
3. The axle is symmetric, so the brake and sprocket can be moved to a different location.
4. Perfect for vertical or horizontal engines with any displacement and electric motors.
5. Fits 6″-10″ wheels with 3″ distance from bolt hole to another contiguous bolt hole.
6. It has almost all the rear-end parts you need.
Come with:
(1) Axle
(1) Brake disc
(1) 428 chain
(1) 428 chain sprocket
(1) 1″ Pillow block bearings
(1) 4 bolt pattern wheel hub
